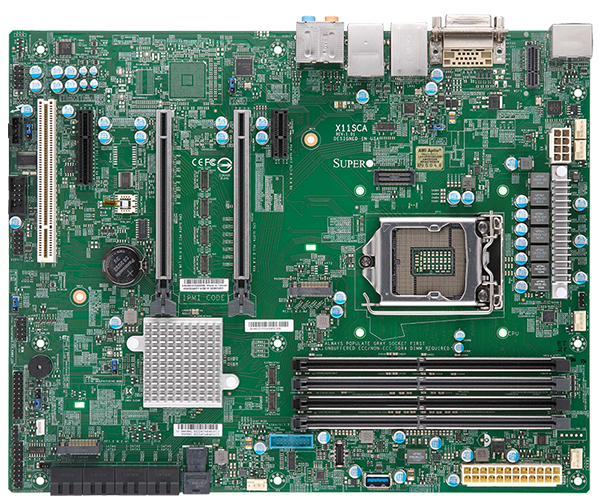

X11SCA-F

ATX

12" x 9.6" (30.48cm x 24.38cm)

8th/9th Generation Intel? Core? i9/Core? i7/Core?i5/Core?i3/Pentium?/Celeron? Processor, Intel? Xeon? E-2100 Processor, Intel? Xeon? E-2200 Processor

Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM

1GB, 2GB, 4GB, 8GB, 16GB, 32GB

1.2V

Intel? C246

Intel? C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

ASPEED AST2500

Single LAN with Intel? Ethernet Controller I210-AT
Shared with IPMI
Single LAN with Intel? PHY I219LM LAN controller

ALC 888S HD Audio

ASPEED AST2500 BMC

Intel UHD P630 graphic(For Xeon E-21xxG/E-22xxG series only)

2 1GbE LAN ports

2 USB 2.0 ports (2 via headers)

4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers)

4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 via header, 1 Type A)

1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,

Intel UHD P630 graphic(For Xeon E-21xxG/E-22xxG series only)

1 COM Port (1 header)

1 TPM Header
