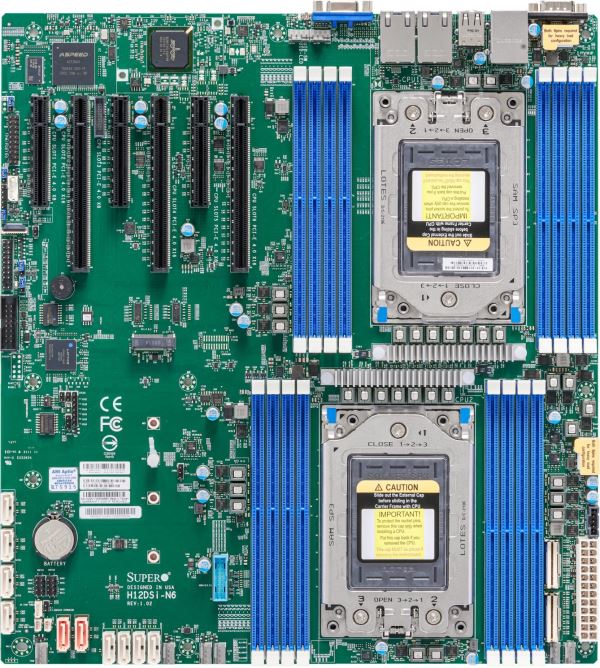

EATX

12" x 13.05" (30.5cm x 33.1cm)

Dual AMD EPYC? 7003/7002 Series Processors

Socket SP3

Up to 64 Cores

System on Chip

16 DIMM slots

Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM

8-channel memory bus

For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

8GB, 16GB, 32GB, 64GB, 128GB, 256GB

1.2V

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

SATA3 (6 Gbps)

Support for Intelligent Platform Management Interface v. 2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2600 BMC

Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller

ASPEED AST2600 BMC

10 SATA3 (6 Gbps) ports

2x 1GbE LAN ports

1 RJ45 Dedicated IPMI LAN port

2 USB 2.0 ports (rear)

4 USB 3.0 ports (2 rear, 2 headers)

1 VGA port

1 COM port (rear)

2 SATA DOM power connectors

4 PCI-E 4.0 NVMe x4 internal ports

TPM 2.0 header

3 PCI-E 4.0 x16 slots

3 PCI-E 4.0 x8 slots

Interface: 1 PCI-E 4.0 x4

Form Factor: 2280, 22110

Key: M-key
