超微X10DRH-I 服務器主板C612/E5-2600V3/V4 返回

基本參數 :

產品詳情

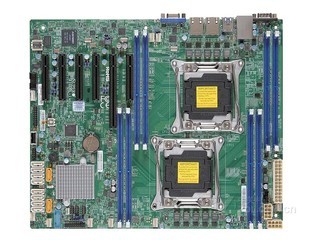

超微X10DRH-I 服務器主板 E-ATX/C612/E5-2600V3/V4


Product SKUs

MBD-X10DRH-I
  • X10DRH-I

Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x16,

  • 6 PCI-E 3.0 x8


System BIOS

BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
  • Plug and Play (PnP)

  • PCI 2.3

  • ACPI 1.0 / 2.0 / 3.0 / 4.0

  • USB Keyboard support

  • SMBIOS 2.7.1

  • UEFI 2.3.1


Management

Software
  • Intel? Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor? 5, Watchdog

Power Configurations
  • ACPI Power Management

  • Power-on mode for AC power recovery


PC Health Monitoring

Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT

FAN
  • 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI

LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features
  • Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC


Operating Environment

Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range
  • 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)


Physical Stats

Form Factor
  • E-ATX

Dimensions
  • 12" x 13" (30.48cm x 33.02cm)


Processor/Cache

CPU
  • Intel? Xeon? processor E5-2600 v3, Intel? Xeon? processor E5-2600 v4.

  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

Cores / Cache
  • Up to 22 cores ? / Up to 55MB? cache

Note
  • ? BIOS version 2.0 or above is required

Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity
  • 1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type
  • 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

  • LRDIMM: 32GB, 64GB

  • 3DS LRDIMM: 128GB

Memory Voltage
  • 1.2V

Error Detection
  • Corrects single-bit errors

<td width="222" class="description border_b" background="https://www.supermicro.org.cn/en/products/motherboard/X10DRH-I?locale=en" style="box-sizing: border-box; font-family: Arial, Helvetica, "sans serif"; padding-top: 3px; padding-bottom: 3px; padding-left: 25px; border-top: none; border-right: none; border-bottom-color: rgb(0, 153, 255); border-left: none; line-height: 1.2; vertical-align: top; color: rgb(0, 51, 102) !impo

    <kbd id="mulhf"><tr id="mulhf"><strong id="mulhf"></strong></tr></kbd>

        On-Board Devices

        Chipset
        • Intel? C612

        SATA
        • Intel? C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

        AHCI SATA
        • SATA3 (6Gbps); RAID 0, 1, 5, 10

        SCU SATA
        • SATA3 (6Gbps); RAID 0, 1, 5, 10

        IPMI
        • Support for Intelligent Platform Management Interface v.2.0

        • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

        • ASPEED AST2400 BMC

        Network Controllers
        • Dual LAN with Intel? i350 Gigabit Ethernet Controller
          Single LAN with Virtual Machine Device Queues reduce I/O overhead
          Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
          Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
